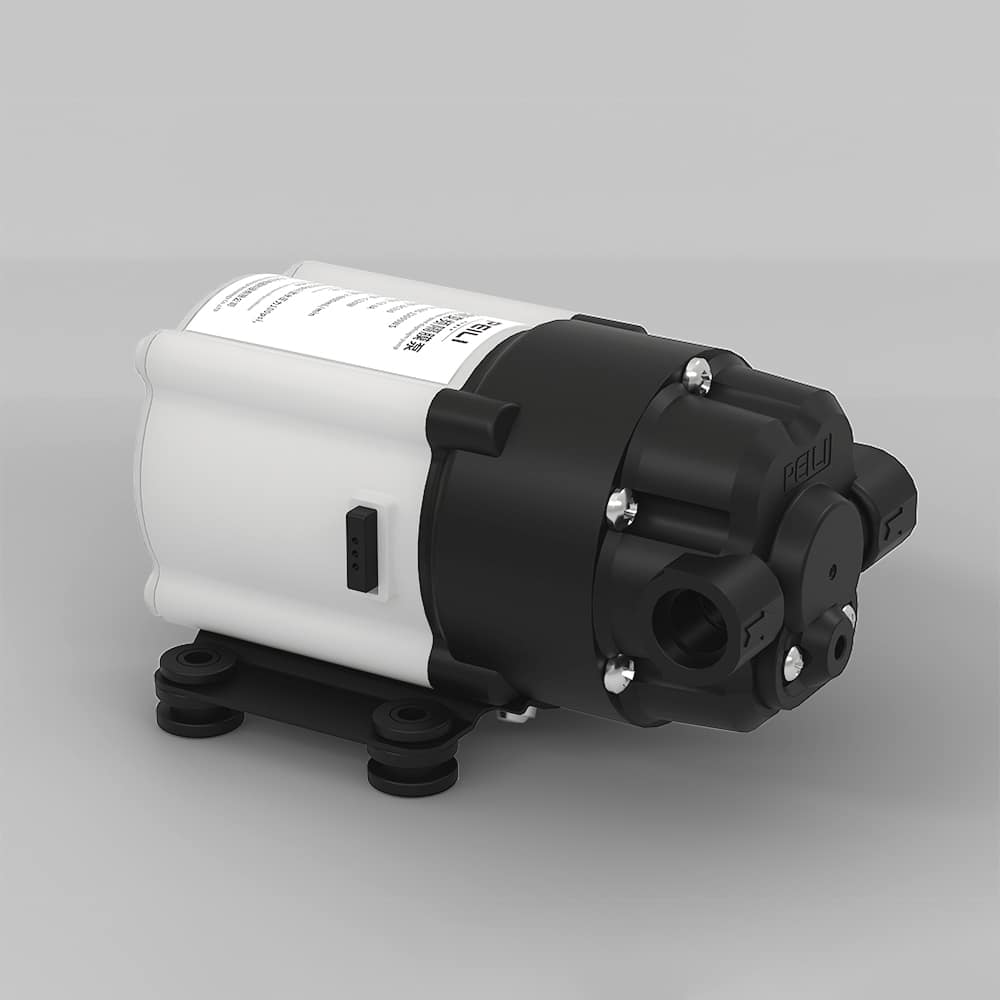

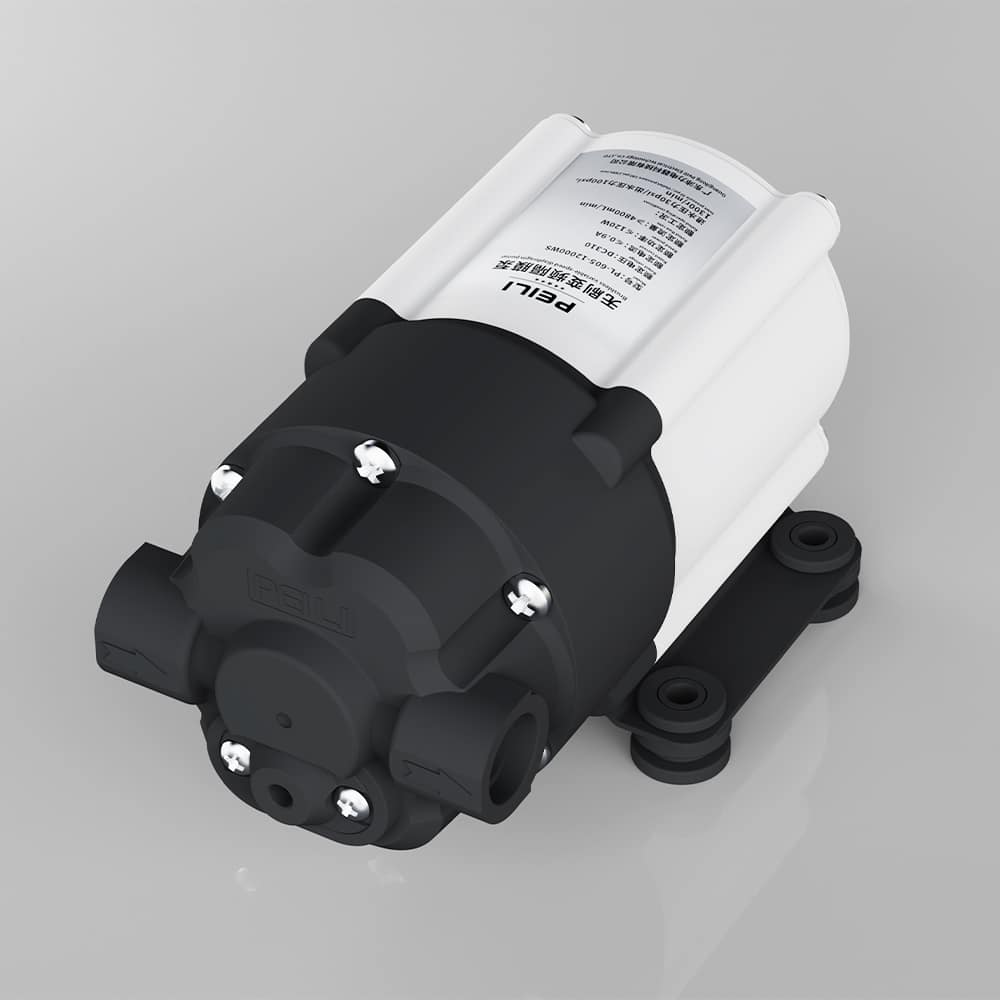

PL-605-1200WS
Brushless variable-speed diaphragm pump
High-flow RO / commercial boost
Flagship 605 brushless booster for residential large-flux and light-commercial RO. AC 115 V / 230 V, ≥ 4.8 L/min at the rated point, outlet max 150 psi. Speed, flow and pressure are adjustable from the driver.
- flow
- ≥ 4.8 L/min
- voltage
- AC 115 V / 230 V
- power
- ≤ 120 W
- pressure
- Max 150 psi
Rated data

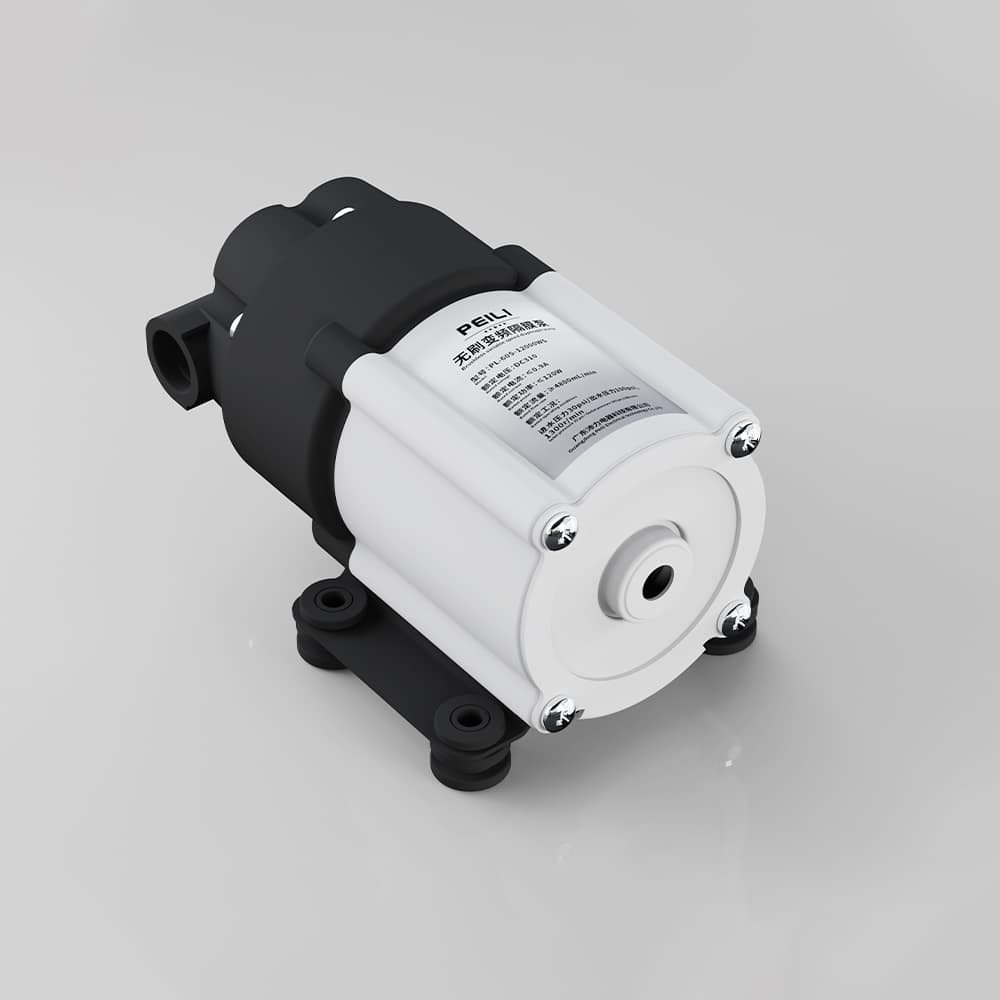

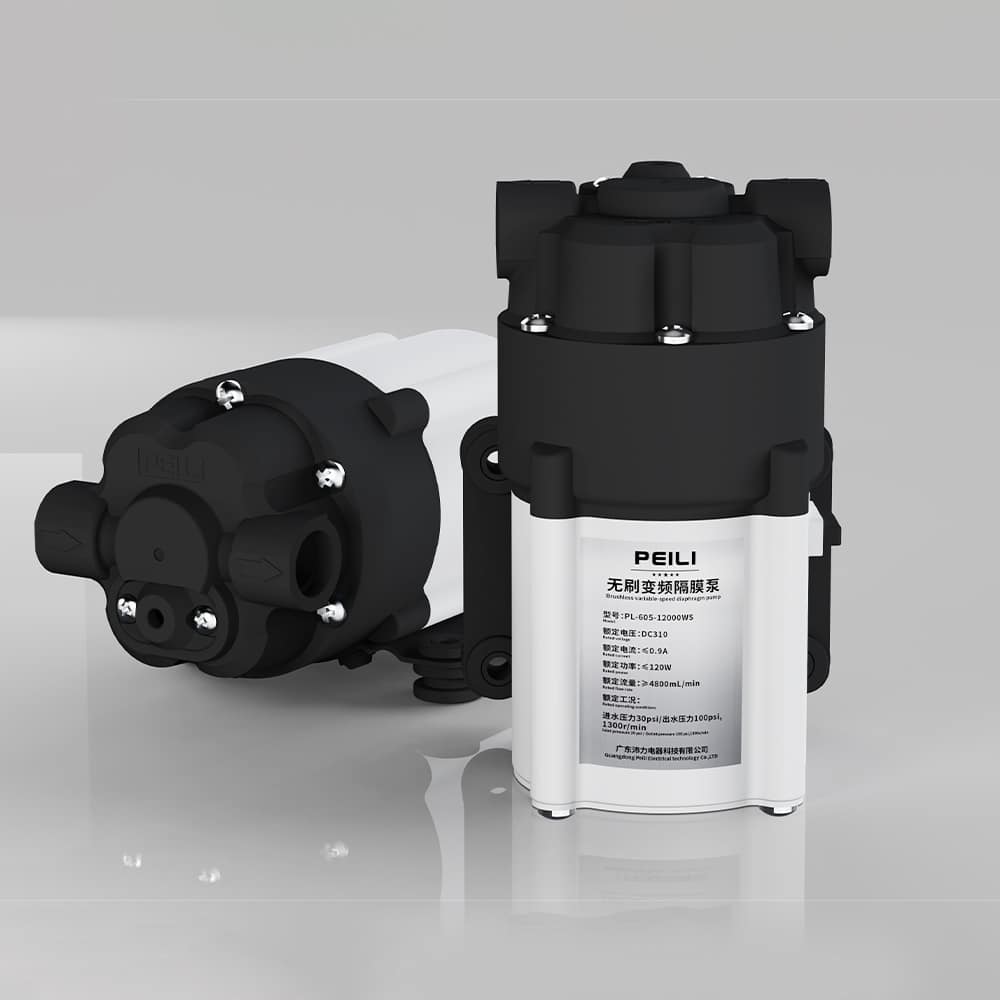

Single-point rating as published on the nameplate. Full Q–P and thermal curves will be issued as a datasheet on the Downloads page.
- — Brushless motor — no carbon brushes, no spark
- — Speed, flow and pressure adjustable from the driver
- — BMC-encapsulated stator for insulation, sealing and heat
- — Magnetic isolation sleeve, leak-free to IP68 at the motor
- — Shared 605 pump head for an easier drop-in on existing layouts
| Model | PL-605-1200WS |
|---|---|
| Type | BMC brushless variable-speed diaphragm pump |
| Rated voltage | AC 115 V / 230 VDriver kits also support DC bus input |
| Rated current | ≤ 0.9 A |
| Rated power | ≤ 120 W |
| Rated flow | ≥ 4,800 mL/min (4.8 L/min) |
| Flow range | 2.5–7.5 L/min (at 100 psi) |
| Outlet pressure | Max 150 psi |
| Rated operating point | Inlet 30 psi / outlet 100 psi, 1,300 r/min |
| Speed control | External signal via multi-function driver |
| Motor construction | Segmented stator, ring assembly, BMC overmold |
| Sealing concept | Magnetic isolation sleeve, epoxy-potted coils |

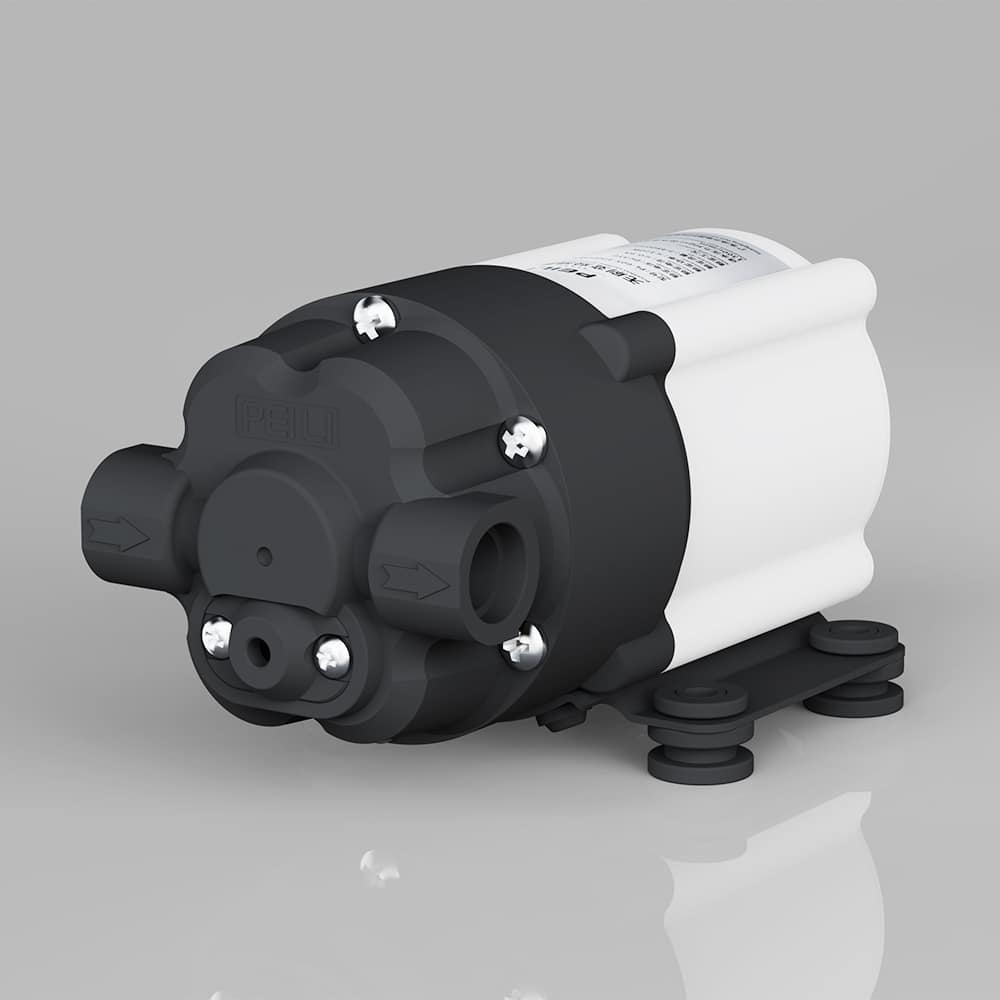

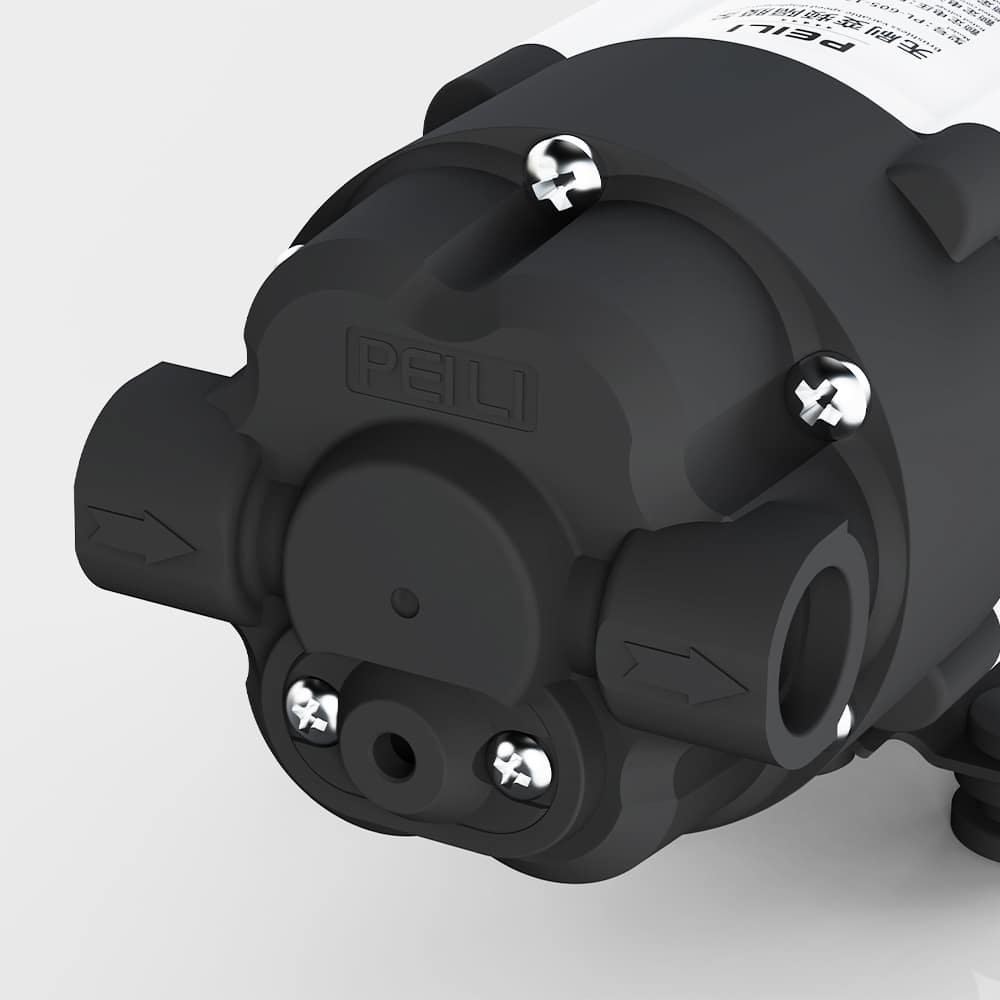

| Pump head | 605-family diaphragm head, PEILI branded ports |
| Typical use | RO boost, commercial purification, dispensers |
